LEAD TIME DESIGN FOR ENGINEERS

This guide explains the four most common PCB substrate families, when to use them, Lead time reduction is
primarily driven by design decisions made before fabrication release. Below are the highest-impact engineering controls.

1️ Design Inside Standard Capability Windows

Why It Affects Lead Time

  • When your board fits inside standard production capability:
  • It skips special engineering review
  • It avoids premium process queues
  • It moves directly into fabrication flow

High-Risk Design Choices

  • 3/3 mil trace/space everywhere
  • ≤6 mil finished vias
  • 10:1 aspect ratio

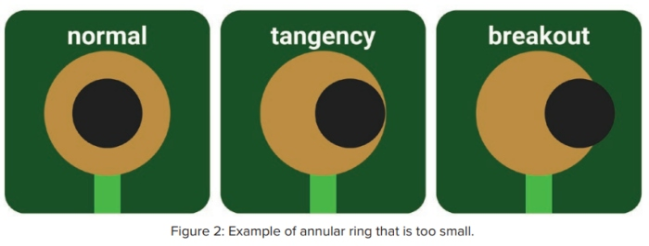

  • Very tight annular rings

Engineering Control

  • Stay at 4/4 mil or larger when possible
  • Keep finished vias ≥8 mil for 0.062" boards
  • Confirm drill and plating limits early
  • Standard builds move faster because they are repeatable.

2️ Avoid HDI Unless Density Demands It

Why It Affects Lead Time

  • HDI requires:
  • Laser drilling
  • Sequential lamination
  • Extra inspection cycles
  • Each lamination cycle can add 1–2 days.

Engineering Control

  • Use dog-bone fanout before choosing microvias

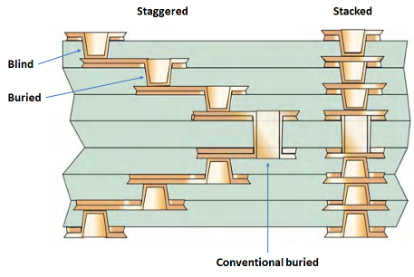

  • Avoid stacked microvias unless unavoidable
  • Prototype with simpler via structures
  • HDI boards automatically enter slower production lanes.

3️ Use Stock FR-4 and Common Dielectric Builds

Why It Affects Lead Time

  • Non-stock materials require:
  • Procurement
  • Batch ordering
  • Possibly import logistics

High-Delay Materials

  • Specialty RF laminates
  • Rare dielectric thicknesses
  • Heavy copper cores
  • Very high Tg not commonly stocked

Engineering Control

  • Ask what cores/prepreg are stocked
  • Choose common dielectric thicknesses

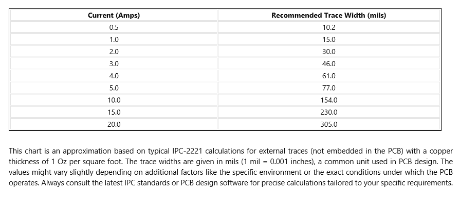

  • Stay with standard 1 oz outer copper
  • Material availability can add days before fabrication even begins.

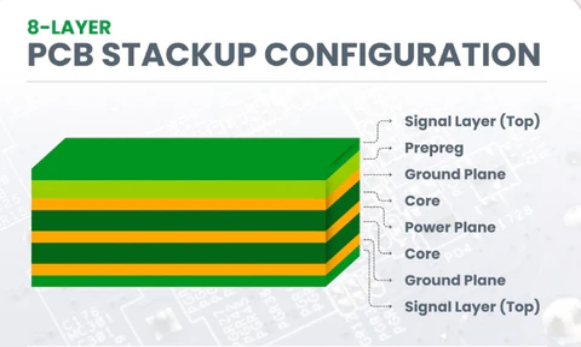

4️ Keep Layer Count Realistic

Why It Affects Lead Time

  • Each additional layer:
  • Adds imaging cycles
  • Adds AOI cycles
  • Extends lamination time
  • Going from 6 layers to 10 layers can significantly change production flow priority.

Engineering Control

  • Optimize plane strategy before adding layers
  • Reassess routing congestion
  • Balance performance vs. schedule
  • Layer count is one of the strongest schedule multipliers.

5️ Simplify Via Structures

Why It Affects Lead Time

  • Complex vias require:
  • Extra drilling programs
  • Filling and planarization
  • Additional inspection
  • Via-in-pad can add multiple process steps.

Engineering Control

  • Use through-hole vias for most routing
  • Avoid filled vias unless assembly requires it
  • Keep aspect ratio under 8:1 when possible
  • Simple vias = faster drilling + plating + inspection.

6️ Avoid Over-Tight Impedance Tolerances

Why It Affects Lead Time

  • Tight impedance (±5% or tighter) requires:
  • Stackup modeling review

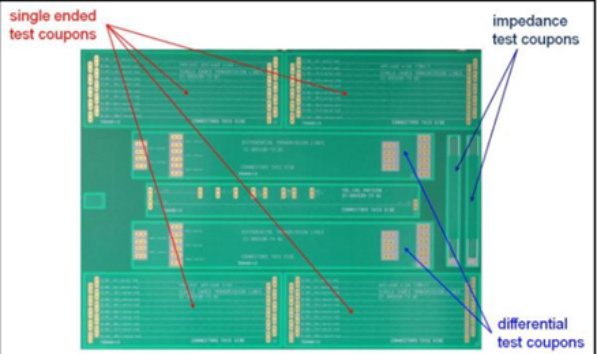

  • Test coupon creation
  • TDR validation

Engineering Control

  • Use ±10% unless physics requires tighter
  • Apply impedance only to critical nets
  • Confirm dielectric thickness availability
  • Unnecessary impedance requirements slow CAM release.

7️ Choose Fast-Turn Surface Finishes

Why It Affects Lead Time

Finishes vary in process time:

  • Faster
  • HASL
  • OSP
  • Slower
  • ENIG (nickel deposition + inspection)
  • Immersion Silver

Engineering Control

  • Use HASL when flatness is not critical
  • Reserve ENIG for fine-pitch or reliability needs
  • Finish choice can affect final process queue.

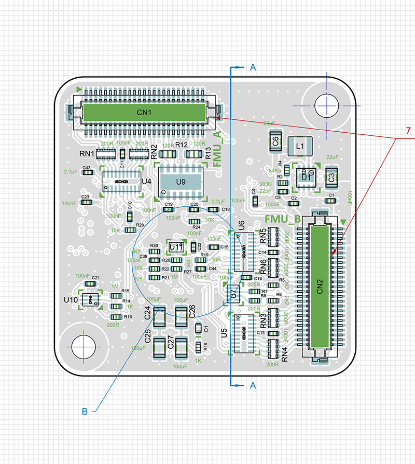

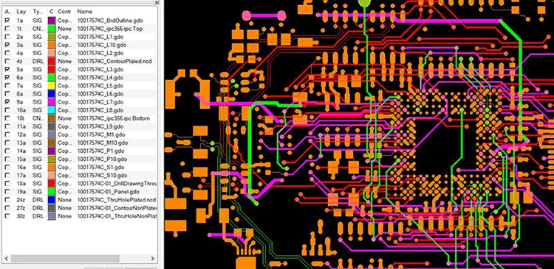

8️ Release Clean, Complete Fabrication Documentation

Why It Affects Lead Time

  • The most common delay is documentation clarification.
  • Typical Stops:
  • Missing surface finish callout
  • Undefined stackup
  • Conflicting drill sizes
  • No IPC class

Engineering Control

  • Before release confirm:
  • Stackup defined clearly
  • Surface finish specified
  • IPC class stated
  • Drill chart included
  • Controlled impedance notes clear
  • Clean documentation prevents CAM hold.

Lead Time Risk Ranking

Design Feature Lead Time Impact
Sequential lamination Very High
Exotic material Very High
10+ layers High
Via-in-pad Moderate–High
Tight impedance Moderate
Standard 4–6L FR-4 Low

Practical Engineer’s Summary

  • Fastest-turn boards typically are:
  • 4–6 layers
  • Standard FR-4
  • 0.062" thickness
  • 1 oz copper
  • No sequential lamination
  • Clean documentation

Slow boards are almost always the result of complex structures, rare materials, or over-specification.

Lead time reduction is controlled at the schematic and layout stage — not in the factory.
